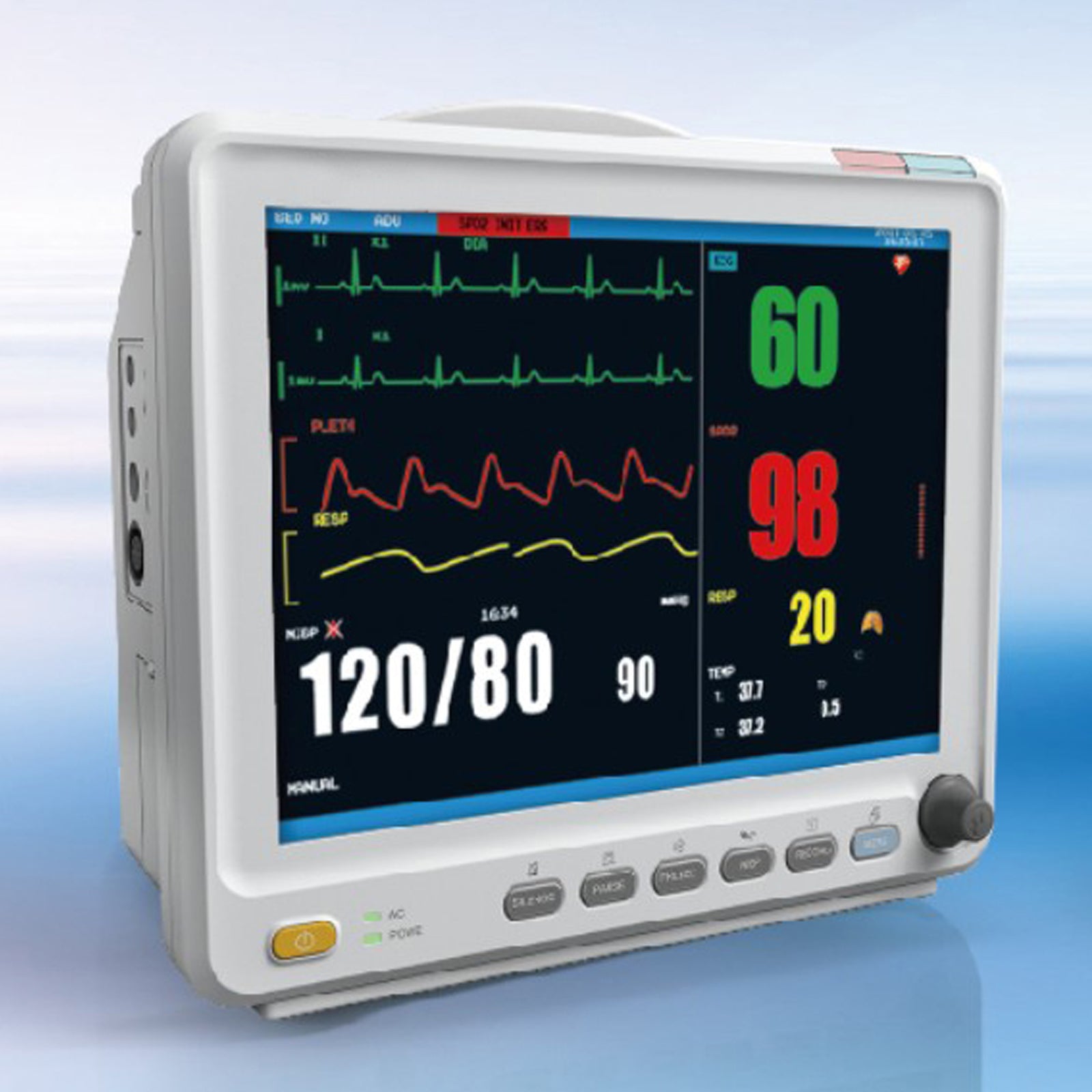

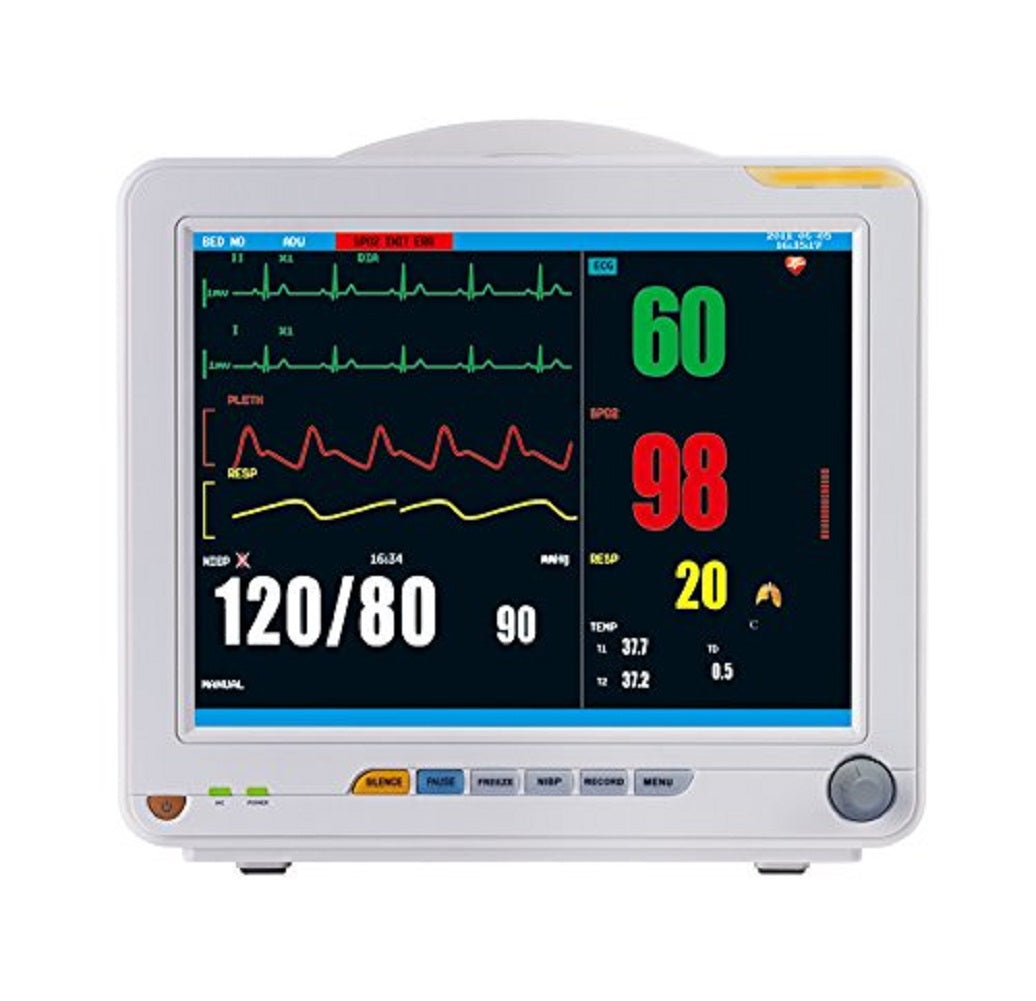

12-inch ICU CCU Parameters Patient Monitor

Regular price
$829.00 USD
Sale price
$829.00 USD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • 12" TFT display, configurable up to 8 waveforms, enables maximum data visibility for the most critical parameters Unique digital SPO2 technology can work accurate during motion and low perfusion,Anti AC & high-frequency electrosurgical & defibrillator’s interference,Ergonomic design, portable, convenient for use
  • Rich screen layout, standard, large font, trend graph, OxyCRG, ECG full lead and others,Strong data storage: 720 hours trends, 10000 group NIBP, 1024 alarms events,ST analysis, arrhythmia analysis, pacemaker analysis, drug analysis and calculation
  • Audible & visual alarm available, adjustable Patient information management function,Super long life rechargeable Lithium battery upto 4 hours of working time,Resp Chest impedance method or concentration of carbon dioxide at end of respiration Scope of chest impedance method 0 time/minute – 100 minutes/minute Precision of chest impedance method time/minute Detection scope of carbon oxygen at end of respiration 3mmHg-75mmHg; 0.4%vol-9.9%vol Detection scope of respiration rate: 2 times/minute ->60 times/minute(including baby) Detection precision of respiration rate: ±1 time/minute
  • Powerful software function to support use in NICU, ICU, OR, CCU or normal patient room,Optional software upgrading based on USB

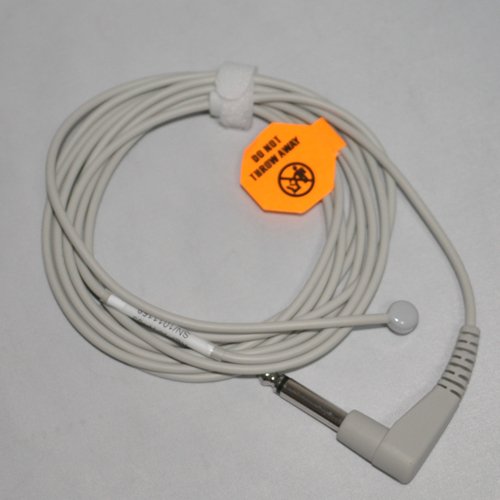

  • Wired/wireless networking with central monitoring system, up to 64 beds in one group,Built-in 3 trace thermal recorder for printing real-time and historical data,Suitable for adult, pediatrics and neonate patients,Temp Single/double path Type: Vascular/surface temperature Scope: 20℃~50℃ Accuracy: ±0.2℃



Specification:
ECG
Full lead: I, II, III, AVL, AVR, AVF and V
Gain: 5mm/mV, 10mm/mV, 15mm/mV, 20mm/mV and 25mm/mV
Scanning speed: Changeable with three grades of 12.5mm/s, 25mm/s and 50mm/s
Band width: 0.05Hz-100Hz(3dB)
Heart rate:
Scope: 15 times/minute to 300 times/minutes
Accuracy: ±1 time/minute
Variation of heart beat LORENZE drawing: Analysis on heart beat data for the current 5 minutes with histogram during RR period.
Arrhythmia: Twenty kinds of common abnormal ECG can be analyzed, with ECG data of 1000 times of arrhythmia kept and with 10 seconds kept for each time.
Accuracy: Error rate < 20%
Undetected rate < 20%
ST section
Scope: ±0.8mV
Precision : < ±0.05mV
SpO2
Detection scope: 0%-100%
Accuracy ±1% 90%-100%
±2% 70%-89%
NIBP
Theory Electric oscillator
Cuff gassing time less than 15 seconds
First-time gassing pressure: dynamic state 24kPa(180 mmHg)
Manual selection: 9.3kPa(70 mmHg),13.3kPa(100 mmHg),16.0kPa(120 mmHg)
18.6kPa(140 mmHg),20.0kPa(150 mmHg),21.3kPa(160 mmHg), Automatic detection period: 1 minute to 240 minutes
Stop size:1 min(1 min -10min), 5min(10 min -30min), 10min(30 m in -90min) and 30min(90 min -240min)
Detection scope:
Systolic blood pressure: 4kPa -34kPa(30mmHg -255mmHg)
Diastolic pressure 2kPa -29.3kPa(15mmHg -220mmHg)
Mean pressure 2.7kPa~31.3kPa (20mmHg~235mmHg)
Detection accuracy
Static pressure: ±3mmHg
Pulse rate: ±2%
